SUPPORT -> JUSCAR C9 4K dash cam

BACK

Brand：JUSCAR | Official Guide Price：168.00USD

【5G WiFi】【Front and Rear】【UHD 4K+1080P】【GPS】【ADAS】【STARVISION2 HDR Night Vision】【Touch Screen】【24H Parking Mode】【Support 512GB Max】

Product Parameters

Charging Method	Car Charger/Buck Cable
Microphone/Speaker	Built-In
Max Supported Memory	256G
Language	English
Resolution	2160P
Video Frame Rate	25fps
Screen Size	3.0"
Lens Aperture	1.4
Lens Angle	170°
Shell Material	Precision Plastic
Shell Color	Black
Photo Pixel	8 Megapixels
Photo Format	JPG
Number of Lenses	Dual Lens

Notice Question

1.Insert the memory card while the device is powered off: Follow the direction indicated by the TF card notch on the device to insert the card correctly. Press the card until you hear a click, ensuring it is fully inserted. Due to the high-speed requirements of video recording, make sure to use a high-speed memory card (CLASS 10 or above, U3 card).

2.A new card must be formatted in the device before first use for proper compatibility.

3.Do not insert or remove the memory card while the device is powered on to avoid damaging the card or losing files.

4.Dash Cam Installation: Power Connection Please use the original charger provided with the device to power it on and charge the built-in battery (if applicable). Connect one end of the car charger to the device’s USB/Type-C port, and plug the other end into the car’s cigarette lighter socket. The device will automatically power on when the car engine is started.

Ask：Why can't the app connect after my iPhone is connected to WiFi?

Answer：The app requires various permissions from your phone to function correctly. Make sure to allow all permissions during installation. If any permissions are blocked or denied, the app may not have the access it needs and could fail to operate properly. For iPhone users, location access is required after installation. Set it up as follows: go to Phone Settings - Privacy - Location Services - appXXX - Allow Location Access - While Using the App. If the app still cannot connect after setting up, follow these troubleshooting steps: a. Turn off the mobile data toggle on your phone. b. In the phone settings, reconnect to the device's WiFi. If you have previously connected, make sure to forget the network and reconnect. c. Make sure to connect to WiFi before opening the app. Also, ensure you are using the correct app that is compatible with the device, as using the wrong one may cause connection issues. These troubleshooting steps should resolve most issues (no need to send the device back right away!).

Ask：Collision sensitivity is set high, but the dash cam isn't locking videos, even on bumpy roads or when slamming the car door. What's the issue?

Answer：This design is primarily intended to activate during emergency situations. If the sensitivity is too high, it would generate too many locked videos, which goes against our design purpose. Too many locked videos can reduce the loop recording space, leading to the device prompting for formatting. To test if the collision detection is working, you can tap the mirror of the device with your knuckle for verification.

Ask：What should I do if the dash cam sometimes displays very dark or very bright images, making photos appear unclear or overexposed?

Answer：1、Adjust the lens downward to include part of the car's hood in the frame. This helps prevent the lens from pointing too much at the sky, which can cause overexposure and automatic dimming. 2、Adjust the exposure compensation settings: +1, +2, +3 to brighten the image; -1, -2, -3 to darken it.

1.First, align the slot of the 3M mount/suction cup mount with the buckle and install it securely.

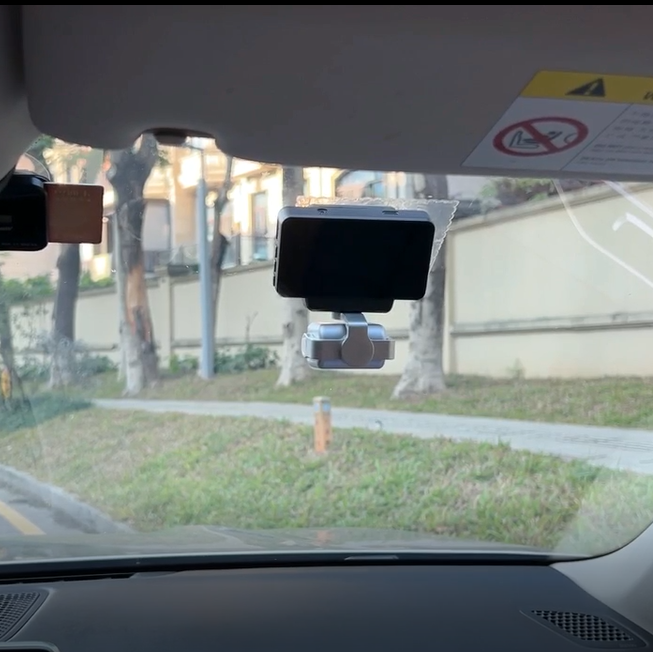

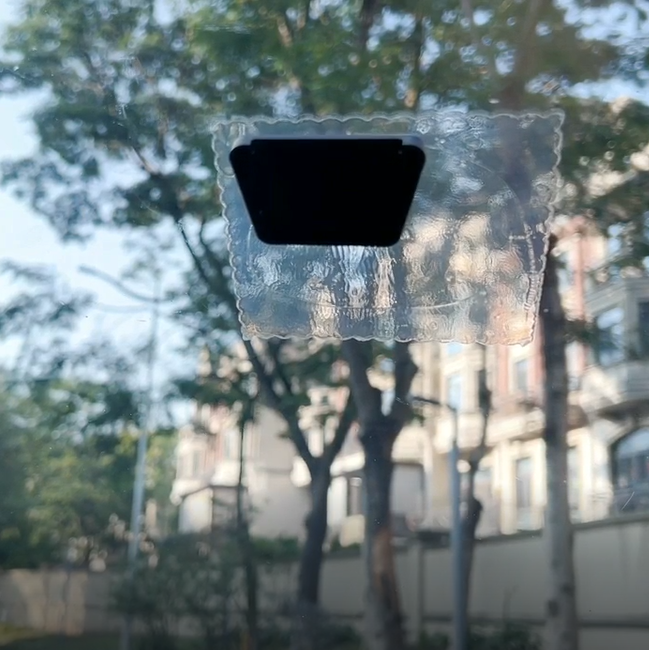

2.Step 2: Clean the car window, peel off the adhesive film from the 3M mount/suction cup mount, and attach the device to a suitable position.

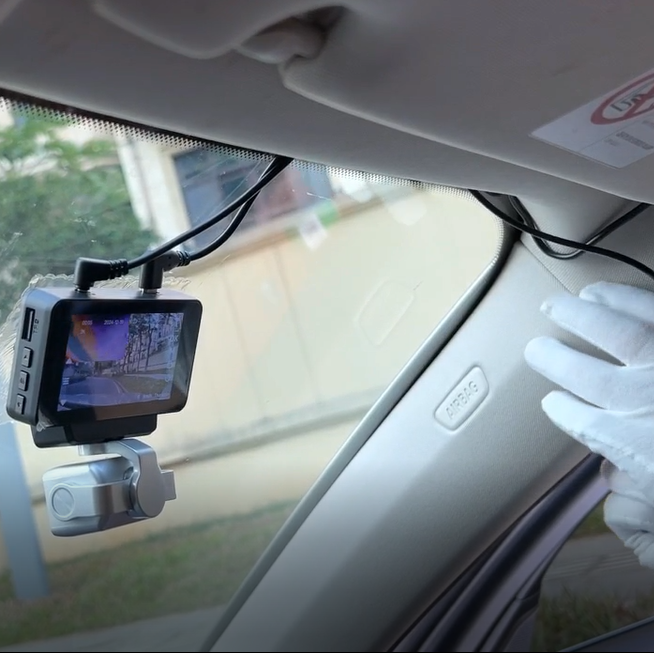

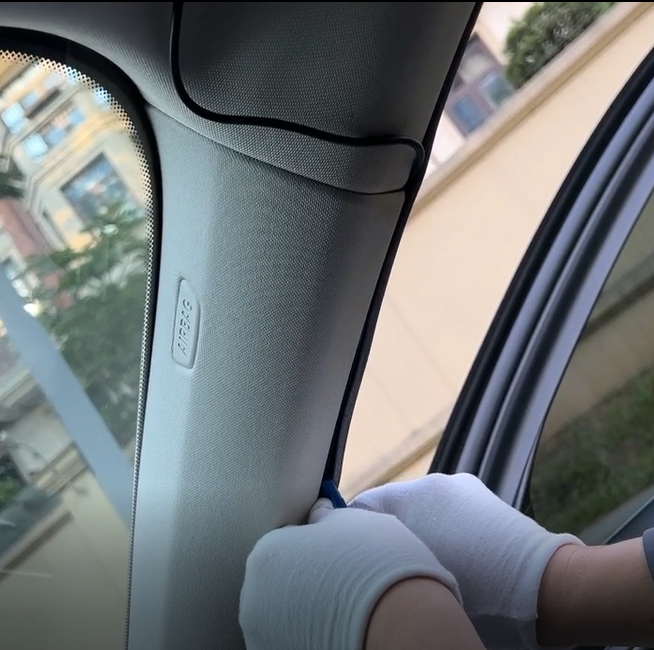

3.Step 3: Connect the power cable and route it along the inner edge of the car roof lining. Starting from the A-pillar, use a pry tool to neatly tuck it into the gap along the weatherstripping.

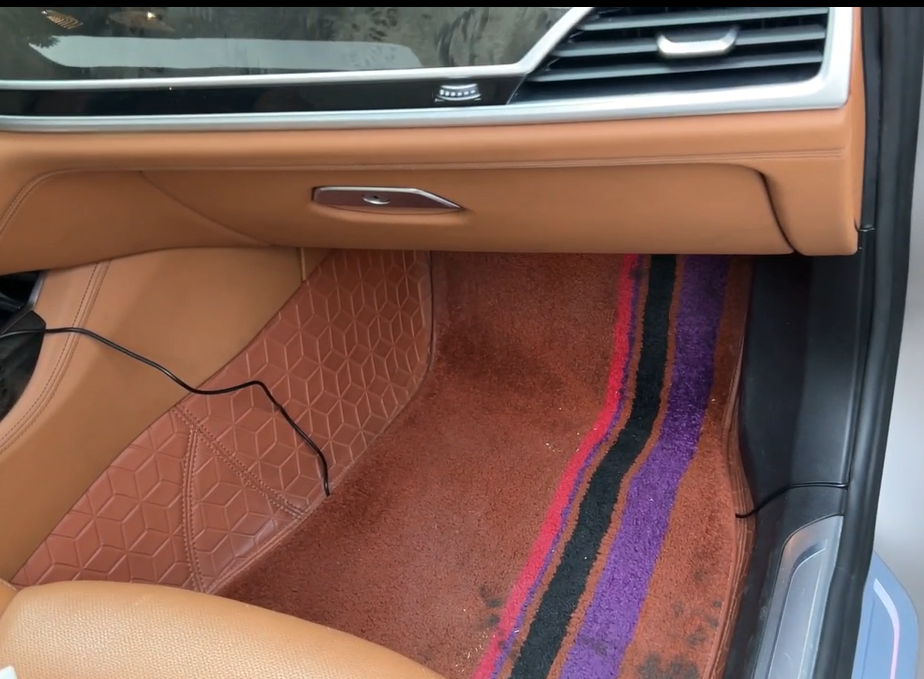

4.Step 4: When routing the cable down to the car floor, store any excess cable under the carpet. Plug it into the car cigarette lighter to power on (the indicator light will turn on). The dash cam will automatically start and is ready for use.

In-Car WiFi	Emergency Recording	Reversing Camera View	ADAS	No-Light Night Vision	Emergency Photo Capture	Ultra-Wide Angle of View	Time-Lapse Recording
WiFi Connectivity	Smartphone Connectivity App	Loop Recording	Collision Detection	Voice Control	Parking Monitoring	Front and Rear	Touch Control
